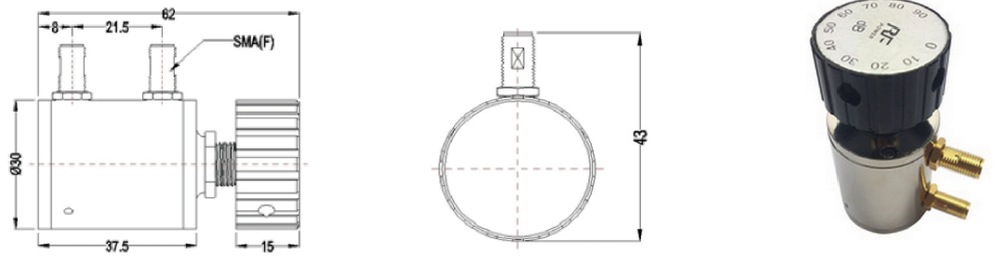

        • name: 10-90dB Variable Rotary Step Attenuator (2W,SMA)
        • 产品编号: 005RFVA-2W-6G-SMA
        • Views:: 111

        Friends Recommend





        Application:



        Attenuators are used in a wide variety of applications and can satisfy almost any requirement where

        a reduction in power is needed.

        Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers,

         reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design.

         Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.



        Electrical Specification













        1. Frequency range (GHz):

        DC-6G

        2. Attenuation Value (dB):

        10.20.30.40.50.60.70.80.90dB

        3. Attenuation accuracy (dB):

        0 .5 dB( 0-10dB)/ 0 .8dB(10- 30 dB)/ 5% (>30 dB)

        4. VSWR:

        1.50 Maximum

        5. Power (W):

        2W

        6. Impedance (Ω):

        50Ω

        7. Connectors:

        SMA FEMALE

        8. Operating Temperature ():

        -55°C to +125°C






        Note: Specifications can be changed according with customers' requirements.



        For more details, please contact us, we have various others items for your selection.
