        LOCATION:产品首页 >> RF Passive Component-DAS/IBS >> Coaxial Attenuator >> 10dB Variable Rotary Step Attenuator (2W,SMA), step 1db

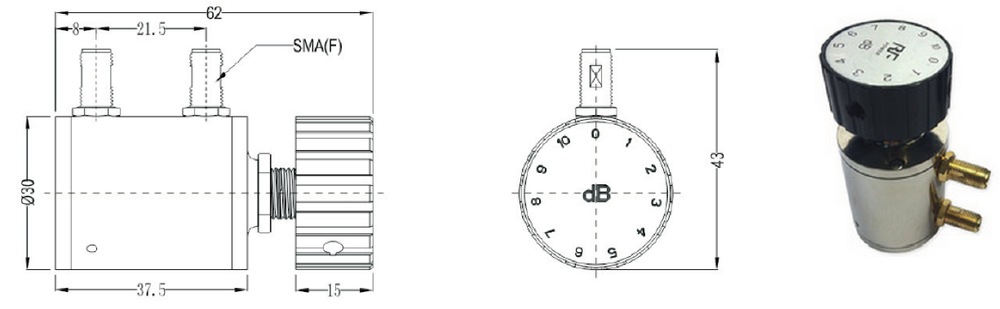

        • name: 10dB Variable Rotary Step Attenuator (2W,SMA), step 1db
        • 产品编号: 014PCVA-2W-SMA1
        • Views:: 74

        Friends Recommend







        Application:



        Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed.

        Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors,

        match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.

        Electrical Specification
        1. Frequency range (GHz):  DG-6G
        2. Attenuation Value (dB):  1.2.3.4.5.6.7.8.9.10dB
        3. Attenuation accuracy (dB): ±0.5
        4. VSWR: 1.50 Maximum
        5. Power (W):  2W
        6. Impedance (Ω):  50Ω
        7. Connectors: SMA FEMALE
        8. Operating Temperature ():  -55°C to +125°C



        Note: Specifications can be changed according with customers' requirements.



        For more details, please contact us, we have various others items for your selection.
