        LOCATION:产品首页 >> RF Passive Component-DAS/IBS >> Coaxial Attenuator >> Manual step rotary attenuator DC-6GHz 0-70dB

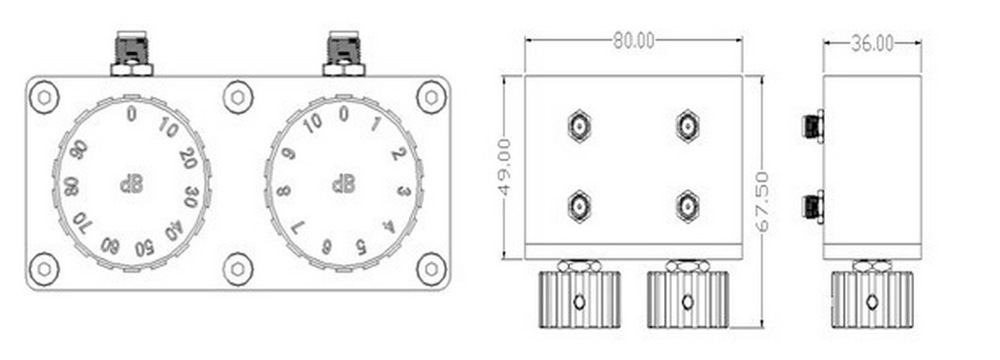

        • name: Manual step rotary attenuator DC-6GHz 0-70dB
        • 产品编号: 007PCVA-70-SMA-KK
        • Views:: 120

        Friends Recommend







        Applications:



        1.Wideband Coverage. 2.Flat Attenuation Value. 3.Excellent VSWR. 4.We are the manufacturer ,can be OEM. 5.Competitive Price.
        Attenuators are used in a wide variety of applications and can satisfy almost any requirement where a reduction in power is needed. Attenuators are used to extend the dynamic range of devices such as power meters and amplifiers, reduce signal levels to detectors, match circuits and are used daily in lab applications to aid in product design. Attenuators are also used to balance out transmission lines that otherwise would have unequal signal levels.



        Technical Specifications:

        NORMINAL IMPENDANCE

        50Ω

        FREQUENCY RANGE

        DC to 6GHz

        VSWR

        ≤1.50

        POWER RATING

        2 watts average

        TEMPERATURE RANGE

        -55°C to +125°C

        Attenuation accuracy

        Attenuation

        1-70

        1dB

        1-10 dB

        2dB

        10-30dB

        5%

        >30dB





        Note: Specifications can be changed according with customers' requirements.



        For more details, please contact us, we have various others items for your selection.
