        LOCATION:产品首页 >> RF Passive Component-DAS/IBS >> 3dB Hybrid Coupler >> 4x4 Hybrid Coupler 698-2700MHz, 200W, DIN connector

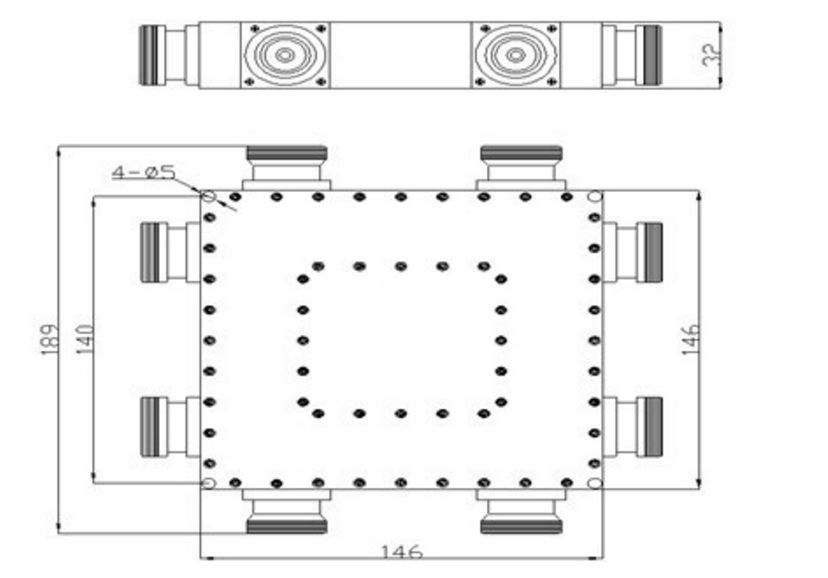

        • name: 4x4 Hybrid Coupler 698-2700MHz, 200W, DIN connector
        • 产品编号: PC-HC-698270-44-DF
        • Views:: 45

        Friends Recommend

        4x4 Hybrid Coupler 698-2700MHz, 200W, DIN,Microstrip







        Specification:



        Frequence:                 800-2500   or   800-2700   or   698-2700MHz

        Insertion loss:            Max 1.0                   Max 1.0                   Max 1.2

        Coupling:                   6.0

        Insulation(dB):           20

        VSWR:                       ≤1.3

        PIM:                           Max-120dBc@2*43dBmMax-140dBc@2*43dBmMax-150dBc@2*43dBm

        Power:                       200W

        RF Connector:             DIN

        Humidity:                   5%-95%




        For more details, please contact us, we have various others items for your selection.
