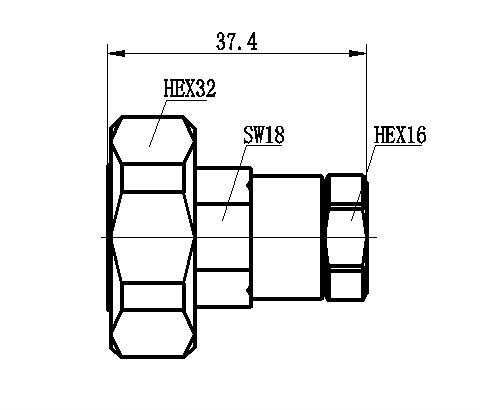

        LOCATION:产品首页 >> RF Connector/Adapter/Dust Cap >> RF Connector >> DIN Connector >> RF Coaxial DIN Male Connector for 3/8 Feeder Cable





        7/16 (DIN, L29) connector is specially designed for outdoor base stations in mobile communication (GSM, CDMA, 3G, 4G) systems, featuring high power, low loss, high operating voltage and perfect waterproof performance and applicable to various environments.



         It is easy to install and provides reliable connection.

         Technical Parameters

        Electrical Requirements



        Impedance

        50Ω



        Frequency

        DC-7.5GHz



        Withstand Voltage(at Sea Level)

        ≤4000Vrms,50 Hz



        Working Voltage(at Sea Level)

        ≤2700Vrms,50 Hz



        Insulation Resistance

        ≥10000MΩ



        Contact Resistance

        Center Conductor

        ≤0.4 mΩ



        Outer Conductor

        ≤1.5 mΩ



        Mechanical Requirements



        Tightening Torque

        25 N.m



        Standard Retention

        Center Conductor

        Insertion Force

        6N  (min)



         Drawing Force

        18N (max)



        Outer Conductor(Notch)

        Insertion Force

        15N (min)



          Drawing Force

        45N (max)



        Durability

        500cycles



         Environmental Requirements



        Temp.Range

        -55°C - +155°C



        Salt Spray

        48h spray



         Material

        Body

        Brass

        Center Conductor

        Plug

        Brass

        Jack

        Tin Phosphorus Bronze

        Crimp Tube

        Brass/Red Copper

        Other Metal

        Brass/Tin Phosphorus Bronze

        Insulator

        PTFE

        Sealing Ring

        Silicone Rubber

        Surface Treatment

        Body

        Silver/Nickel/Ternary Alloys

        Center Conductor

        Silver

        Outer Conductor

        Silver/Nickel/Ternary Alloys

        Other Metal

        Silver/Nickel/Ternary Alloys

        Crimp Tube

        Nickel/Ternary Alloys
