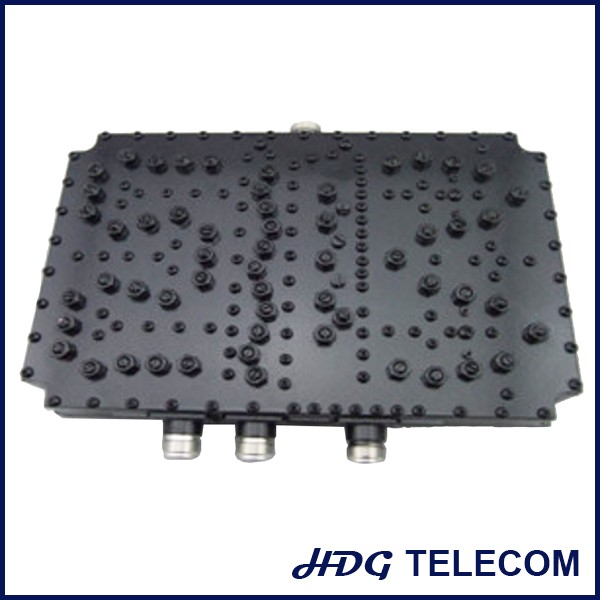

        1710-1880/1920-2170/2400-2500MHz Three Band Combiner, DCS/3G /WLAN combiner



        Application:

        1. Mobile Communication Network Optimization and Indoor distribution system.
        2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
        3. Radar, Electronic Navagation and Electronic Confrontation.
        4. Aerospace Equipment systems.



         Specification:



        CH:                                          CH1:DCS                    CH2:3G                     CH3:WLAN

        Frequency(MHz):                      1710-1880                 1920-2170                  2400-2500

        Insertion Loss(dB):                    <=0.8dB                   <=0.8dB                      <=0.8dB

        Passband Ripple(dB):                 <=0.6dB                   <=0.6dB                      <=0.6dB

        Outband Rejection(dB):            ≥80@CH2&3               ≥80@CH1&3                ≥80@CH1&2

        VSWR:                                    <=1.25

        PIM3:                                     <=-120dBC@2×43dBm

        Impedance(ohm):                    50

        Power(w):                               200

        Operating Temperature:           -30~+65℃

        Connector:                              N female


        For more details, please contact us, we have various others items for your selection.
