        LOCATION:产品首页 >> RF Passive Component-DAS/IBS >> Combiner >> 800-960 and 1710-1880, 1920-2170 two way Combiner, GSM&DCS/3G 2 band combiner

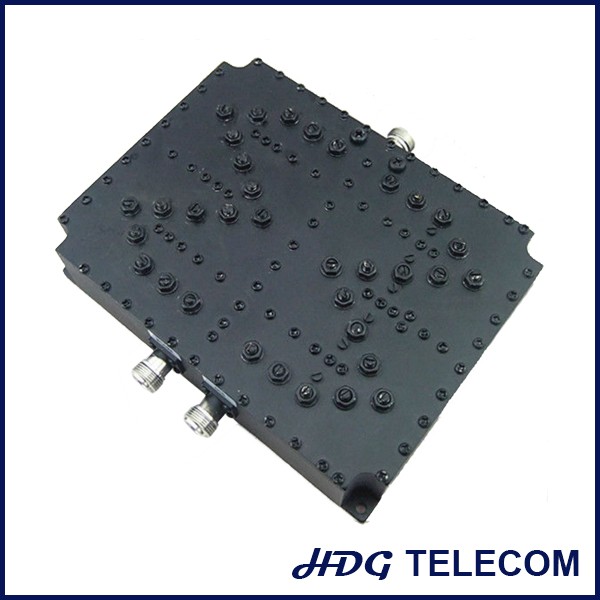

        • name: 800-960 and 1710-1880, 1920-2170 two way Combiner, GSM&DCS/3G 2 band combiner
        • 产品编号: PC-CB-GSM,DCS/3G-NF
        • Views:: 50

        Friends Recommend

        800-960 and 1710-1880, 1920-2170 two way Combiner, GSM&DCS/3G 2 band  combiner



        Application:

        1. Mobile Communication Network Optimization and Indoor distribution system.
        2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
        3. Radar, Electronic Navagation and Electronic Confrontation.
        4. Aerospace Equipment systems.



         Specification:



        CH:                                          CH1: GSM&DCS                                CH2:3G

        Frequency(MHz):                       800-960&1710-1880MHz                 1920-2170

        Insertion Loss(dB):                    <=0.8dB                                         <=0.8dB

        Passband Ripple(dB):                 <=0.6dB                                         <=0.6dB

        Outband Rejection(dB):               ≥80@CH2                                      ≥80@CH1

        VSWR:                                    <=1.25

        PIM3:                                     <=-120dBC@2×43dBm or -140dBc@2×43dBm

        Impedance(ohm):                    50

        Power(w):                               200

        Operating Temperature:           -30~+65℃

        Connector:                              N female or according your requirement.




        For more details, please contact us, we have various others items for your selection.
