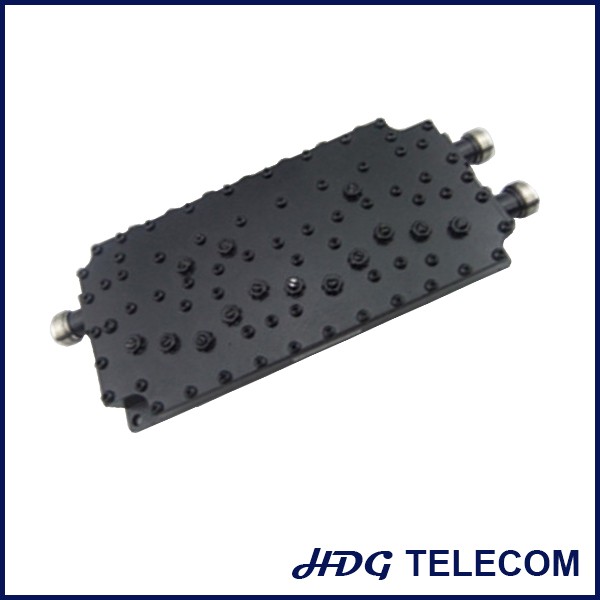

        • name: 800-960&1710-2170/2400-2500MHz two band combiner, CDMA2000&PHS/WLAN 2 way combiner
        • 产品编号: PC-CB-CDMA2000,PHS/WLAN-NF
        • Views:: 45

        Friends Recommend

        800-960&1710-2170/2400-2500MHz two band combiner, CDMA2000&PHS/WLAN 2 way combiner











        Application:

        1. Mobile Communication Network Optimization and Indoor distribution system.
        2. Cluster Communication, Satellite Communication, Shortwave Communication and Hopping Radio.
        3. Radar, Electronic Navagation and Electronic Confrontation.
        4. Aerospace Equipment systems.



         Specification:



        CH:                                          CH1: CDMA2000&PHS                       CH2:WLAN

        Frequency(MHz):                       800-960&1710-2170MHz                   2400-2500MHz

        Insertion Loss(dB):                    <=0.4dB                                          <=0.5dB

        Passband Ripple(dB):                 <=0.3dB                                          <=0.4dB

        Outband Rejection(dB):              ≥80@CH2                                       ≥80@CH1

        VSWR:                                     <=1.25

        PIM3:                                       <=-120dBC@2×43dBm or -140dBc@2×43dBm

        Impedance(ohm):                     50

        Power(w):                                200

        Operating Temperature:            -30~+65℃

        Connector:                               N female or according your requirement.




        For more details, please contact us, we have various others items for your selection.
